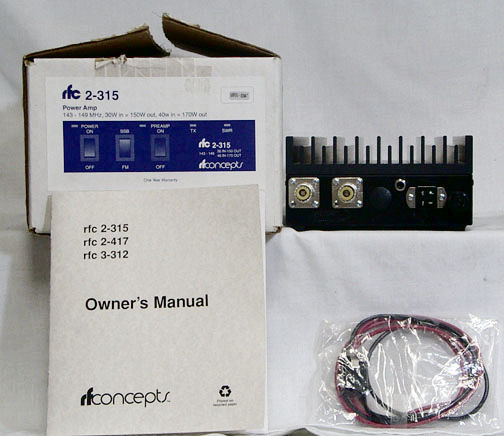

RF Concepts RFC 2-315
| Type: |
All-mode VHF Linear Amplifier |
| Frequency Range: |
143-149 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
22 A |
| Drive power: |
30 W nominal, 40 W max |
| Maximum power output: |
150 W @ 30 W input |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
152 x 76 x 292 mm (6 x 3 x 11.5 inches) |
| Weight: |
2.27 Kg (5 lbs) |
| Manufactured: |
199x-199x (Discontinued) |
| Other: |
Built-in 18 dB GaAs-FET preamp |
